Adventures with certificates, 2-way-SSL and WCF

I’ve recently dived deep into WCF and security. To be exact I’ve tinkered with something that is called 2-Way–SSL a little. It’s a quite complex topic and I will try to summarize what I’ve learned.

1. Issuing certificates

Resources: http://msdn.microsoft.com/en-us/library/ff648902.aspx and http://msdn.microsoft.com/en-us/library/aa386968%28v=vs.85%29.aspx

System: Windows 7

To start you will have to have a certificate. Essentially you have two options if you don’t have one yet:

a) getting one from a CA (Certification Authority),

b) issuing one for yourself.

While choosing the way to go, keep in mind what do you need it for. The whole point of certificates is they need to be trusted. For your development its sufficient you trust yourself, but if you want to sing the SSL communication from your website or sign the emails you send you will need something more. For some purposes a free certificate from issuer like COMODO, CAcert or StartSSL are sufficient. They will only verify that you own the domain and/or email. If you need more thorough verification you will have to pay (from tenths to thousands of dollars).

If you are .NET developer sitting on Windows (sometimes mutually exclusive – cheers to Mono developers), you can use tool called MakeCert. You will find it in Visual Studio Command Prompt. To create usable certificate you will have to act like a CA yourself. So as a fist step you will have to issue a certificate for your CA. You can do it like that:

makecert -n "CN=MkCA" -r MkCA.cer -sv MkCA.pvk

Add a password for your private key (or choose to use none). This command will create a certificate *.cer and a file containing the private key *.pvk. The certificate needs to be added to “Trusted Root Certification Authorities” store. To do so, start the Microsoft Management Console (execute mmc.exe) and from in menu go to File –> Add/Remove Snap-in… and choose Certificates. Press Add > button and choose to manage the certificates in Computer account and on Local computer. Then press Ok.

Navigate to Console root –> Certificates (Local computer) –> Trusted Root Certification Authorities and from the context menu choose All Tasks –> Import…

Find the *.cer file you created using MakeCert and add it to the certification store.

Congratulations from now on you trust the certificates issued by the CA you’ve just created. Now you need a certificate combined with private key to secure the communication from the server. To do so you have to issue following commands

makecert -n "CN=localhost" -ic MkCA.cer -iv MkCA.pvk -sv MkServer.pvk MkServer.cer

pvk2pfx -pvk MkServer.pvk -spc MkServer.cer -pfx MkServer.pfx

The fist one will create a private key file and a certificate under your certificate authority MkCA issuer for “localhost” computer. The second one will create *.pfx file that contains both the certificate and the private key (and it can be protected by a symmetric key – a password – to assign one use the –po switch to pvk2pfx). The *.pfx file is necessary to secure the communication. The server will send the certificate (containing among other information’s a server public key) to the client. The client will encrypt a random number using the server public key and send it back to the server. This number will become a symmetric key used by both parties to encrypt the communication.

2. Securing the IIS communication using SSL

Now when you have the the *.pfx ready you can secure the IIS Web Site. To do so do the following:

1. Open IIS Manager (start InetMgr.exe or go to Control Panel –> Administrative Tools –> Internet Information Services (IIS) Manager)

2. Go to server node (root node with the name of your computer) and open “Server Certificates”

3. From Actions choose Import …

4. Pick the *.pfx file you’ve created and enter password (if you used one).

5. Create a new Web Site (or use the default one if you like to secure it) and from Action choose Bindings…

5. Choose binding type https and newly imported SSL certificate.

Voila the website supports now secure communication.

Lets talk a little about the client (browser) configuration. While in IIS Manager with focus on the newly created web site choose Browse *:443 (https) from the Actions pane (or navigate to the website by typing the URL in the browser address)

As you can see there is a problem with the certificate. It’s because the browser tried to verify the issuer of the server certificate and failed. It failed because the issuer is not trusted.

As you can remember you’ve added your certificate authority key to the computer storage. But it’s not enough the browser uses the Current User certificate store. So you will have to add the certificate authority once again to user storage. Use the mmc.exe again. Add Certificates snap-in but choose “My user account” this time. Then add the CA certificate as described in section 1.

Note: if the certificate keeps disappearing (why? I don’t know – id did on my machine) from the store please experiment with the storage. Choose Registry or Local Storage as showed below.

Restart the browser and the problem report will be gone. The communication is encrypted. The certificate is trusted.

3. 2-Way-SSL

The term “2-Way-SSL” is sometimes used to describe the scenario where both the server and the client need to verify each other. It means that not only the server must present the certificate. The client need to do accordingly.

On IIS it can be achieved by setting the client certificate requirement in the “SSL Settings” of the web site or web application.

Set the Require SSL and choose to require client certificates.

From now on you will get the HTTP Error 403.7 – Forbidden if you will try to get the resource in the browser.

It’s because you don’t have the client certificate ready on the client side. Lets fix it. We will need a *.pfx file one again. Lets create one.

makecert -n "CN=marcin" -ic MkCA.cer -iv MkCA.pvk -sv MkClient.pvk MkClient.cer

pvk2pfx -pvk MkClient.pvk -spc MkClient.cer -pfx MkClient.pfx

With the *.pfx file ready you should add it to Personal –> Certificates in the Local Computer. Now the client will be able to present the client certificate and accomplish the 2-Way-SSL.

4. WCF and 2-Way-SSL

Ressources: http://www.codeproject.com/KB/WCF/wcfcertificates.aspx and http://www.codeproject.com/KB/WCF/WCFSSL.aspx

It’s now time to glue the pieces together. Lets configure WCF service to use the client certificates to communicate with the server.

I have used a simple service that took a string as a parameter and returned it back to the client. I named the service EchoService, I used wsHttpBinding to secure the communication on the transport level (it secures the whole communication as opposed to only securing the messages if you use Mosseage mode). The binding configuration looked like this:

   1: <bindings>

   2:   <wsHttpBinding>

   3:     <binding name="WSHttpBinding_IEchoService">

   4:       <security mode="Transport">

   5:         <transport clientCredentialType="Certificate"></transport>

   6:       </security>

   7:     </binding>

   8:   </wsHttpBinding>

   9: </bindings>

To keep the things simple I’ve turned off the publication of metadata off. The services and behaviors looked like this:

   1: <services>

   2:   <service name="WcfServiceLib.EchoService">

   3:     <endpoint address="" binding="wsHttpBinding"

   4:             bindingConfiguration="WSHttpBinding_IEchoService"

   5:             contract="WcfServiceLib.IEchoService">

   6:     </endpoint>

   7:   </service>

   8: </services>

   9: <behaviors>

  10:   <serviceBehaviors>

  11:     <behavior>

  12:       <serviceMetadata httpGetEnabled="False"/>

  13:       <serviceDebug includeExceptionDetailInFaults="True" />

  14:     </behavior>

  15:   </serviceBehaviors>

  16: </behaviors>

On the client side of things the configuration needs to be extended with a behaviors section like that one:

   1: <behaviors>

   2:         <endpointBehaviors>

   3:           <behavior name="clientCertificateConf">

   4:             <clientCredentials>

   5:               <clientCertificate findValue="8516165A77364EDA28853CAAAD6197C5158E80A4"

   6:               storeLocation="CurrentUser"

   7:               x509FindType="FindByThumbprint" />

   8:             </clientCredentials>

   9:           </behavior>

  10:         </endpointBehaviors>

  11:       </behaviors>

It tells the client to use the client credentials taken from a CurrenUser certificate store and to search for the certificate using a given thumbprint (findValue). You can find the thumbprint in the certificate details tab.

Note if you get a “Invalid hexadecimal string format” from System.IdentityModel you will need to type the thumbprint by hand into the config file instead of copying it into the file. Oh, not ask why. Don’t forget do delete and add the quotation marks too

The rest of the client configuration is easy. wsHttpBinding like the one you used on the server plus gathering everything together in client configuration block.

   1: <client>

   2:   <endpoint address="https://localhost/Wcf2WaySsl/Echo.svc"

   3:             binding="wsHttpBinding"

   4:             bindingConfiguration="WSHttpBinding_IEchoService"

   5:             contract="EchoServiceReference.IEchoService"

   6:             behaviorConfiguration="clientCertificateConf"

   7:           name="WSHttpBinding_IEchoService">

   8:   </endpoint>

   9: </client>

You are done.

You can always configure the client by code like that:

   1: // Configure binding with transport level certificate security

   2: WSHttpBinding binding = new WSHttpBinding();

   3: binding.Security.Mode = SecurityMode.Transport;

   4: binding.Security.Transport.ClientCredentialType = HttpClientCredentialType.Certificate;

   5:

   6: EndpointAddress endptadr = new EndpointAddress("https://localhost/Wcf2WaySsl/Echo.svc");

   7:

   8: // Configure client by code

   9: using (EchoServiceReference.EchoServiceClient client = new EchoServiceReference.EchoServiceClient(binding, endptadr))

  10: {

  11:

  12:     // Configure client certificate

  13:     client.ClientCredentials.ClientCertificate.SetCertificate(StoreLocation.CurrentUser,

  14:         StoreName.My, X509FindType.FindByThumbprint,

  15:         "8516165A77364EDA28853CAAAD6197C5158E80A4");

  16:

  17:     client.Echo("Test");

  18: }

5. Great finale

Keep in mind that the whole process is a bit tricky. It’s easy to make mistake so be careful and check if:

1. the certificate status you use is “This certificate is OK.”,

If not check if the CA is among the trusted root certification authorities. Beware of disappearing certificates

2. the “Issued To” field of the server certificate matches the name of the server you are using (localhost in my case),

3. If you are testing the SSL configuration using another browser then IE keep in mind that it can use its own certificate store and not the default windows one (Firefox does, Chrome not).

4. you can easily test the services with tools like soapUI. To set it up to use client certificates go to Preferences and set it up like this:

I had to create a *.pfx file WITH password to make it work.

Then if the server is configured to transport level security you can simply send a XML request to it to check if everything works fine.

Happy coding!

Selenium RC and FitNesse as a service on Windows Server 2008

If you are working in a team or running a continuous integration process the most comfortable way to run tools like Selenum RC Server or FitNesse is to install them as a windows service. I was doing this earlier on my old Windows Server 2003 by issuing the  instsrv.exe (to install a service) on srvany.exe (to run anything) – both from Windows Resource Kit. I had to edit the registry to provide what exactly do I wanted to run (java –jar selenium-server.jar or java –jar fitnesse.jar).

But there is no Windows Resource Kit for 2008. You might use the sc.exe and get the old srvany.exe (with compatibility issues according to Microsoft itself). It would work but why bother when there is a Non-Sucking Service Manager! All you have to do to install a service with this tool is to download it, issue a

nssm.exe install SeleniumRC

and edit this dialog box:

Click Install service and you are done. Selenium RC Server is installed. All you have to do is to start it. Voila!

How to make CruiseControl.NET accept SSL certificate under Windows Server 2008?

If you are running CruiseControl.NET under the Local System account and your SVN server certificate was issued by yourself (or by VisualSVN Server) you will quickly run into trouble. Normally if you run any command on your repository you will get this information:

C:\Program Files\svn\bin>svn log https://your_server/svn/your_repository/trunk –username username –password password
Error validating server certificate for ‘https://your_server:443′:
- The certificate is not issued by a trusted authority. Use the
fingerprint to validate the certificate manually!
- The certificate hostname does not match.
Certificate information:
- Hostname: your_server
- Valid: from Sat, 26 Sep 2009 17:24:27 GMT until Tue, 24 Sep 2019 17:24:27 GMT

- Issuer: your_server
- Fingerprint: 24:8e:f6:ba:c7:a6:3f:69:32:c0:21:92:64:44:62:fe:2c:bb:b4:69
(R)eject, accept (t)emporarily or accept (p)ermanently?

If you accept you will not be bothered again. But CCNet works as a Windows Service. There is no one to make the decision. How to deal with this issue. Well earlier it was easy enough. You had to use one of the security holes and start cmd.exe in interactive mode wit at command (look here for more details). But with Windows Server 2008 it is not possible you will simply get this:

C:\Users\Administrator>time
The current time is: 23:31:11.59
Enter the new time:

C:\Users\Administrator>at 22:32 /interactive cmd.exe
Warning: Due to security enhancements, this task will run at the time
expected but not interactively.
Use schtasks.exe utility if interactive task is required (‘schtasks /?’
for details).
Added a new job with job ID = 1

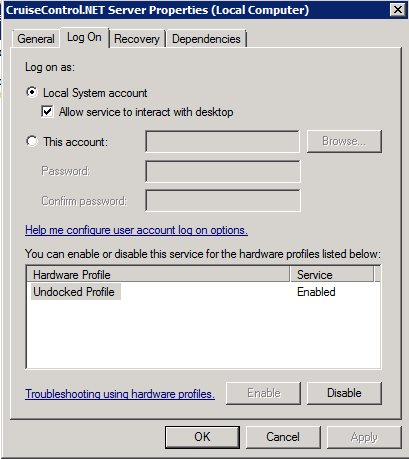

How to deal with this. There is very easy solution. Set the CruiseContril.NET service “Allow to interact with desktop” flag (Start –> Control Panel –> Administrative Tools –> Services –CruiseControl.NET) like this

Restart the service and wait a while for this windows to appear:

Select show me the message.

Voila! You have command line as Local System user available. You can now issue the

C:\Program Files\svn\bin>svn log https://your_server/svn/your_repository/trunk –username username –password password
command and accept the SSL certificate permanently.

From this time on you CCNet server will not have any problems with accessing your secured repository.

How to associate a file extension with a given file?

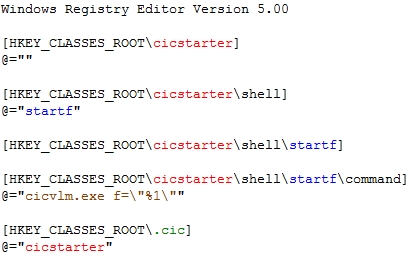

(Windows) You can edit a file type in Explorer (XP: Tools –> Folder options, Vista: Start –> Default Programs). But lets say you want to do it automatically and you have to set an additional parameter to the program you want to start (I have still not figured it out how to define such parameter under Vista). The easiest way is to create a file with *.reg extension that contains this script:

Red (cicstarter) – Schell command name

Blue (startf) – Action name

Brown (cicvlm.exe f=\”%1\”) – Application path (parameter inside f=)

Green (.cic) – File extension

You can manipulate the colored parts to feet your needs. Here is the script. Good luck!
